The 12V DC relay stands as a pivotal component in the world of electronics and electrical systems, acting as a powerful interface between low-voltage control signals and high-voltage loads. This article delves into the function, applications, and important considerations when working with 12V DC relays, aiming to provide a comprehensive understanding for enthusiasts and professionals alike.

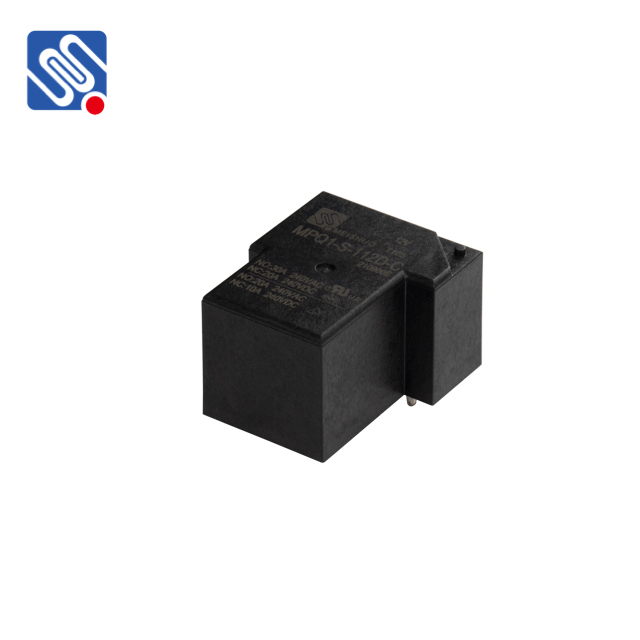

What is a 12V DC Relay? A relay, in essence, is an electromechanical switch that uses a small amount of energy to control a larger load. The 12V DC relay is specifically designed to operate with a 12-volt direct current (DC) supply. It typically consists of a coil, a set of contacts (both normally open and normally closed), and an armature that moves in response to the magnetic field generated when current flows through the coil. When a 12V DC signal is applied to the coil, it generates a magnetic field that attracts the armature, bringing the contacts together and completing the circuit for the high-voltage load. This mechanism makes the 12V DC relay an essential tool in automotive electrical systems, home appliances, and industrial automation.
