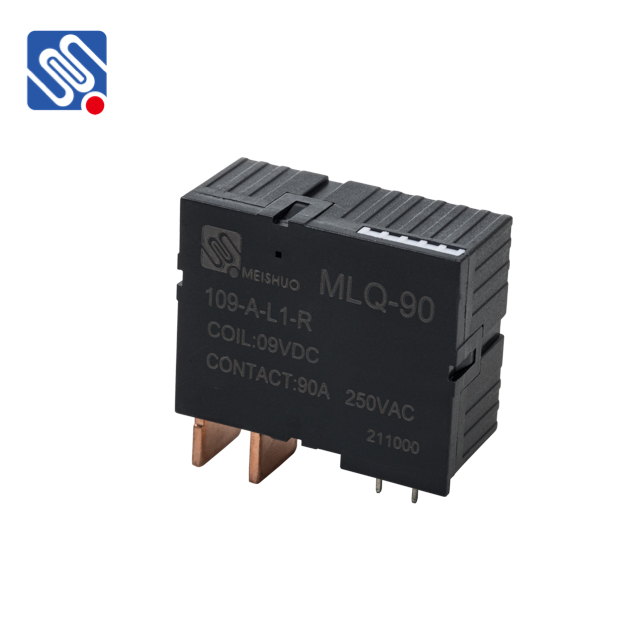

A bistable relay, also known as a latching relay, is a type of electromechanical relay that has two stable states, allowing it to maintain its position without requiring continuous power input. These relays are designed to switch between two states—ON and OFF—based on external control signals and to remain in the selected state until another signal changes it. Due to their low power consumption and robust performance, bistable relays are widely used in applications ranging from industrial automation to energy-efficient systems. This article explores the working principles, applications, advantages, and challenges of bistable relays.
Working Principle of Bistable Relays A bistable relay operates on the principle of two stable magnetic states. The relay has two positions, typically referred to as “set” and “reset,” which correspond to the ON and OFF states of the relay contacts. Unlike conventional relays, which require continuous power to maintain their state, a bistable relay only needs a brief pulse of power to switch between these two states. Once in one state, the relay remains in that position without requiring any additional power input. This feature is achieved by using a mechanism called “latching,” where a magnetic field is created during the switching process that holds the contacts in place. In most cases, a bistable relay requires a specific polarity of current or voltage to latch in one direction and a reverse signal to latch in the opposite direction. This design allows for significant energy savings in applications where the relay is required to stay in one position for extended periods.
