The WCB Pneumatic Butterfly Valve is a crucial component in modern fluid control systems, widely utilized across various industries for its efficiency, reliability, and versatility. This article delves into the design, operation, and applications of this type of valve, highlighting its significance in industrial processes.
Overview of the WCB Pneumatic Butterfly Valve

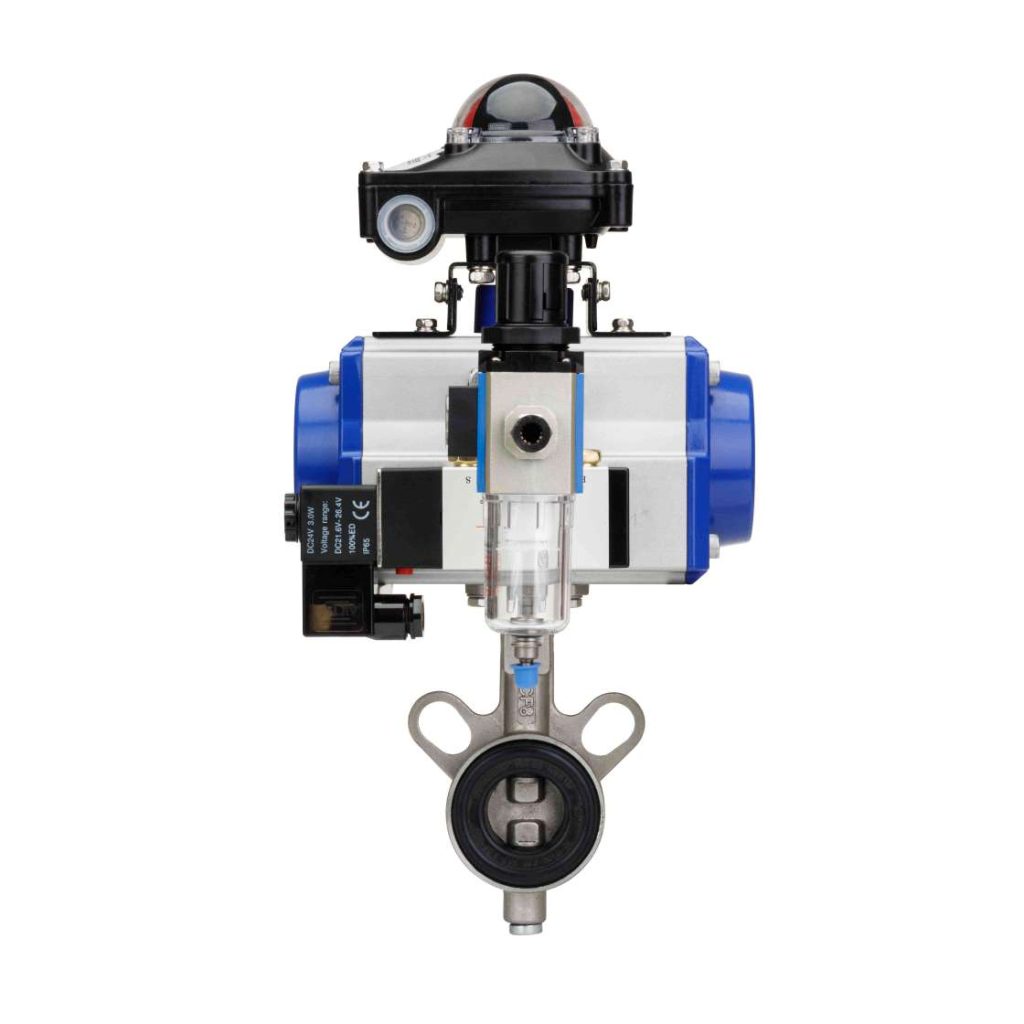

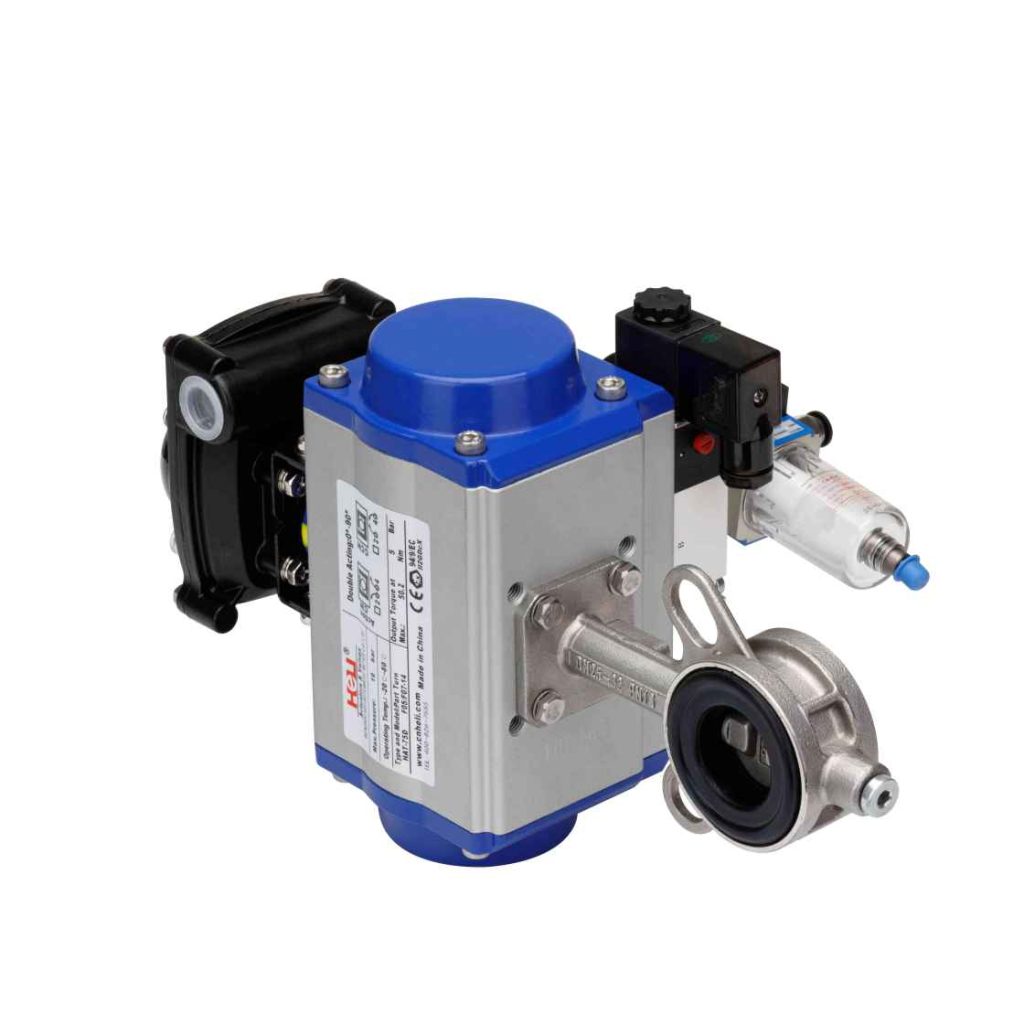

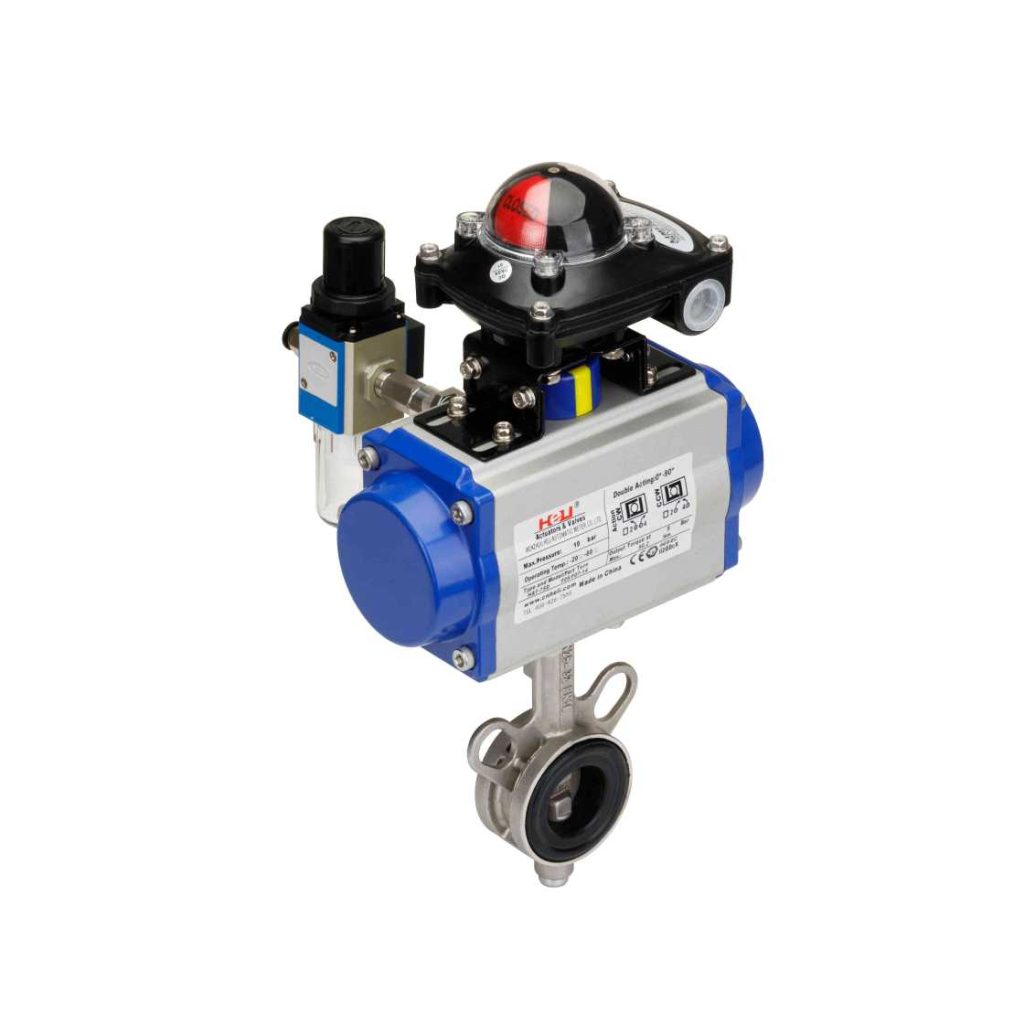

The WCB Pneumatic Butterfly Valve is designed to control the flow of fluids in a pipeline. The valve’s construction consists of a disc, which rotates around a central axis, and is typically operated by a pneumatic actuator. This mechanism allows for quick and efficient opening and closing of the valve, facilitating precise flow control. The “WCB” in its name refers to “Wrought Carbon Steel,” indicating the material from which the valve body is constructed. This material choice is pivotal as it ensures the valve’s durability and resistance to corrosion. Key Components and Operation The primary components of the WCB Pneumatic Butterfly Valve include the valve body, disc, seat, and pneumatic actuator.
