A pneumatic ball valve is a type of valve that uses compressed air to control the flow of fluids through a piping system. These valves are known for their efficiency, ease of use, and quick response time, making them an essential component in many industrial applications. This article explores the functionality, various uses, and advantages of pneumatic ball valves, providing a comprehensive overview of why they are integral to modern automation and fluid control systems.
Functionality of Pneumatic Ball Valves

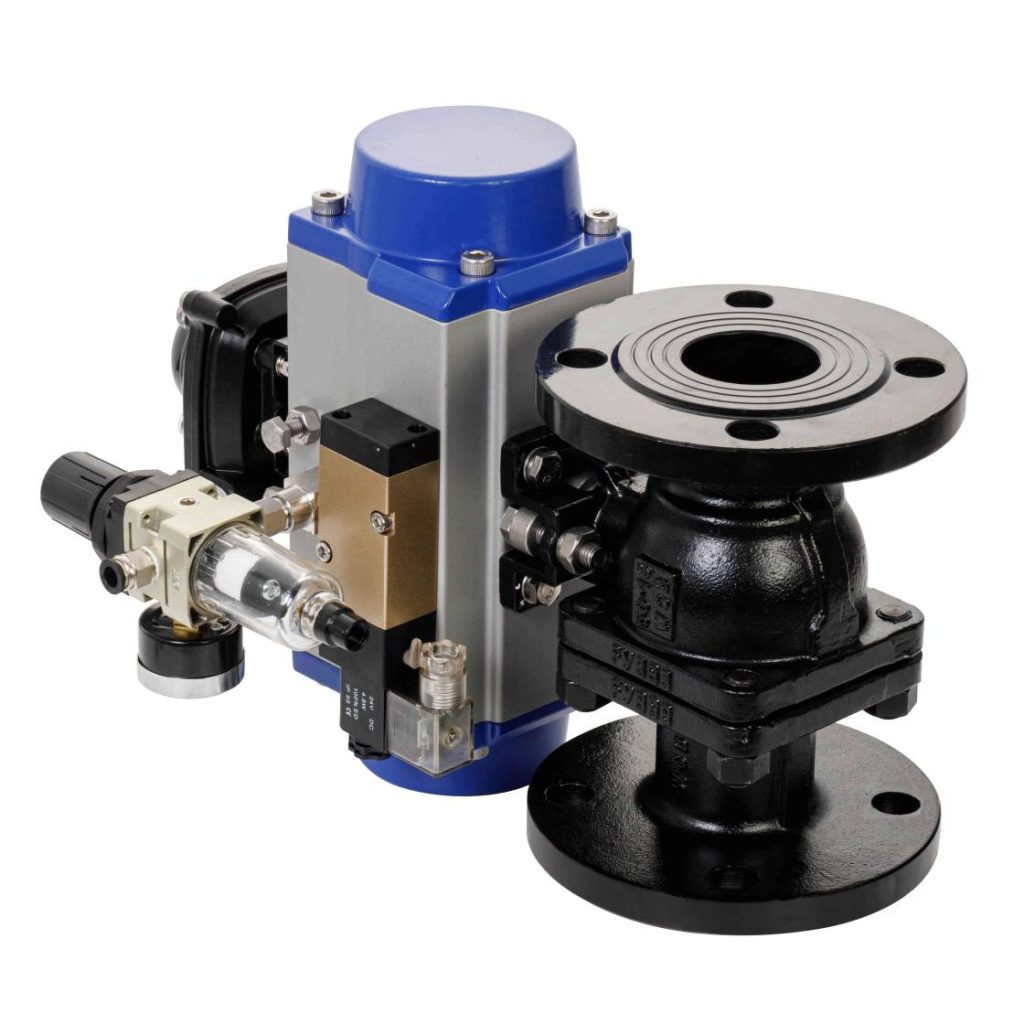

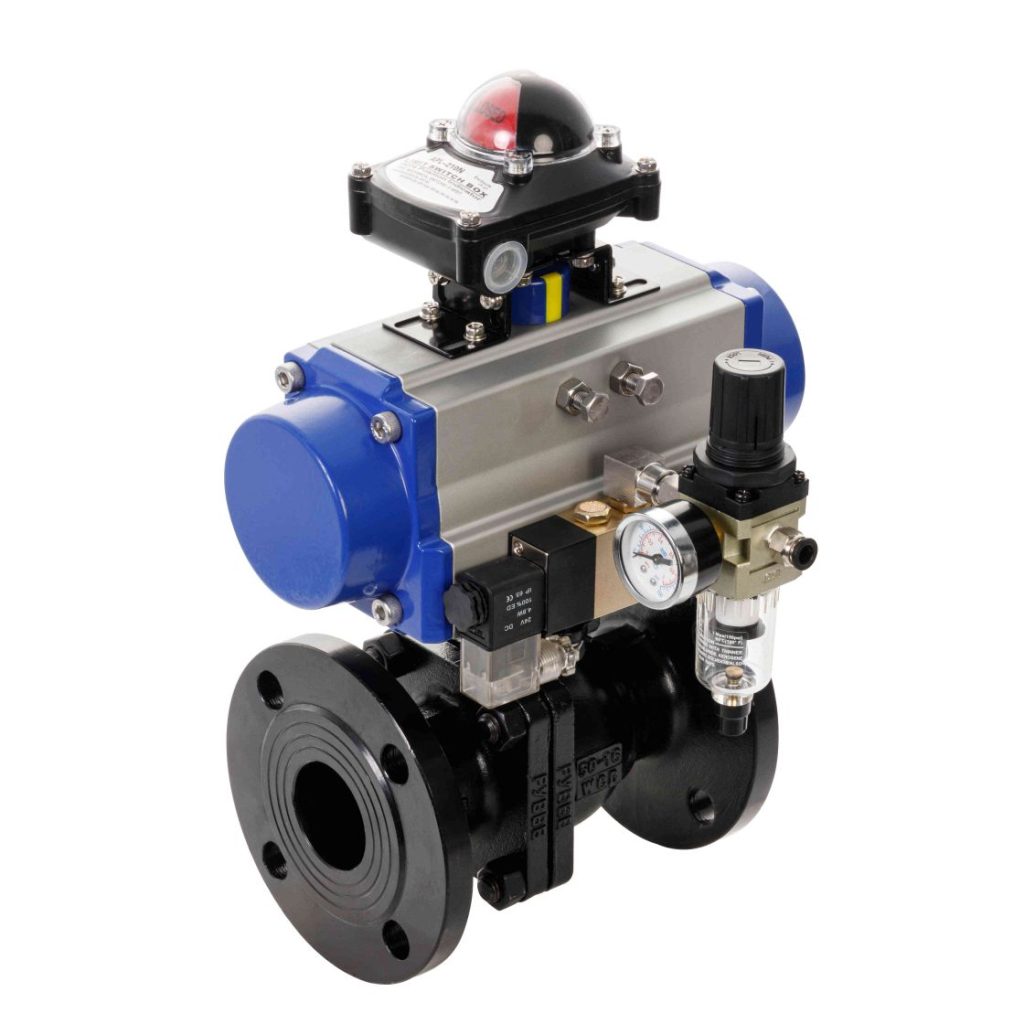

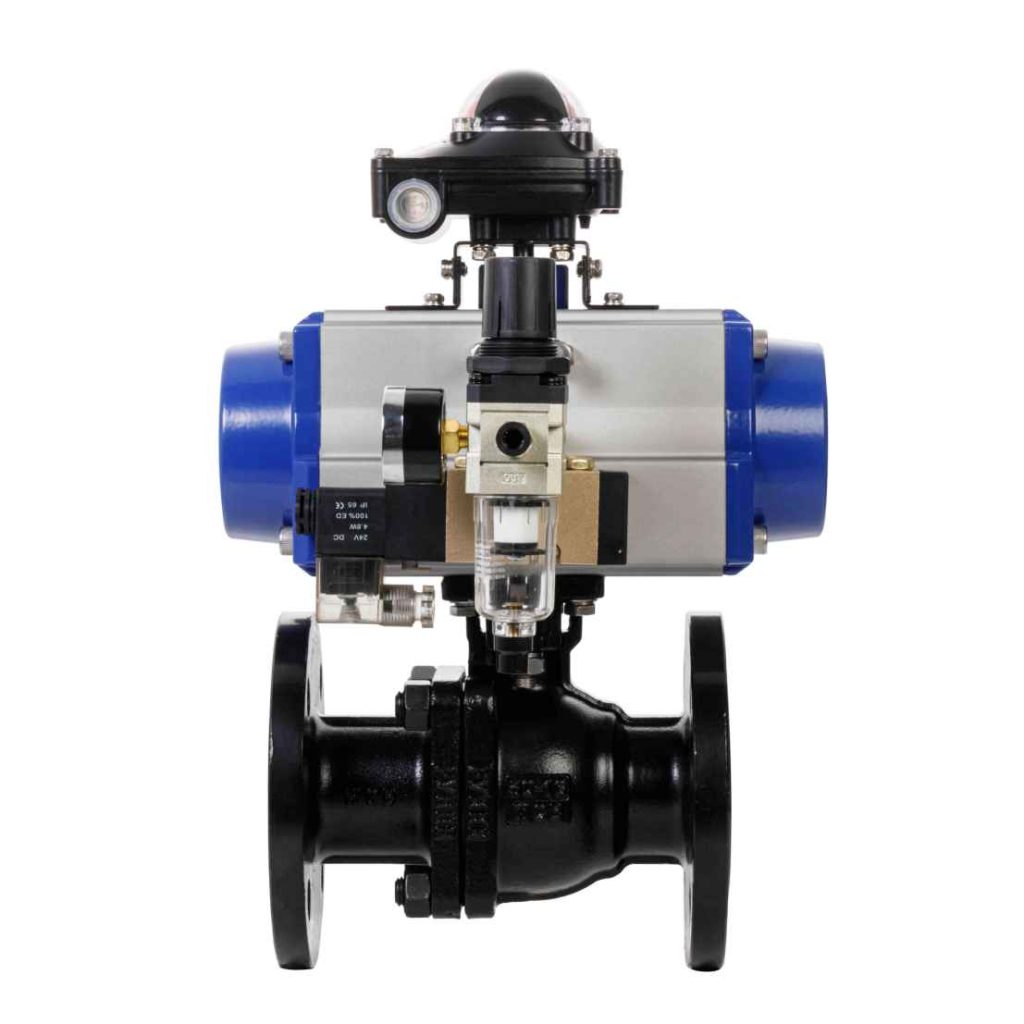

The pneumatic ball valve consists of a spherical ball with a hole through its center. When the valve is open, the hole aligns with the flow path, allowing fluid to pass through. When the valve is closed, the ball rotates to block the flow of fluid completely. The valve operates via a pneumatic actuator, which is powered by compressed air. This actuator is connected to the valve stem, and when air pressure is applied, it rotates the ball to open or close the valve. Pneumatic ball valves are typically used for on-off control in applications where quick and reliable switching is required. The actuator can rotate the ball valve 90 degrees to achieve full opening or closing in a matter of seconds, ensuring rapid response times for process control.
