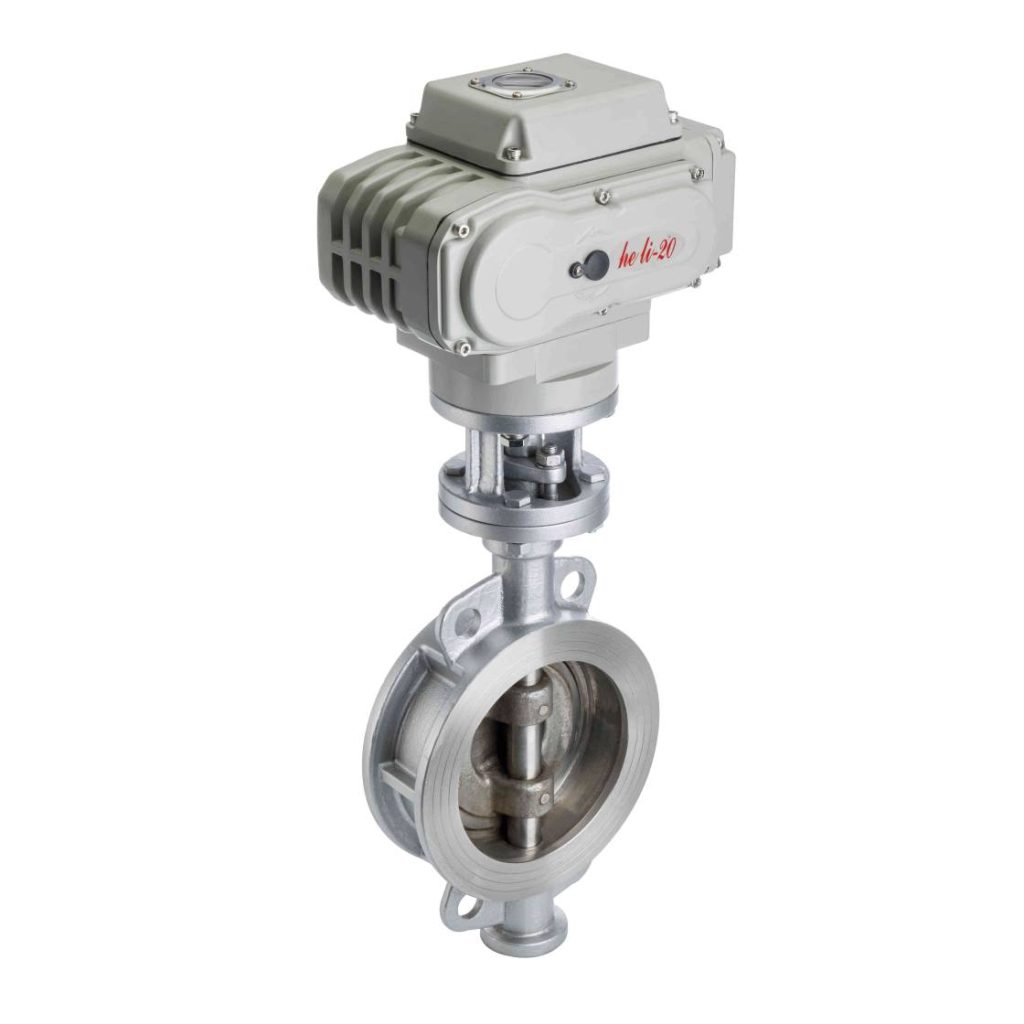

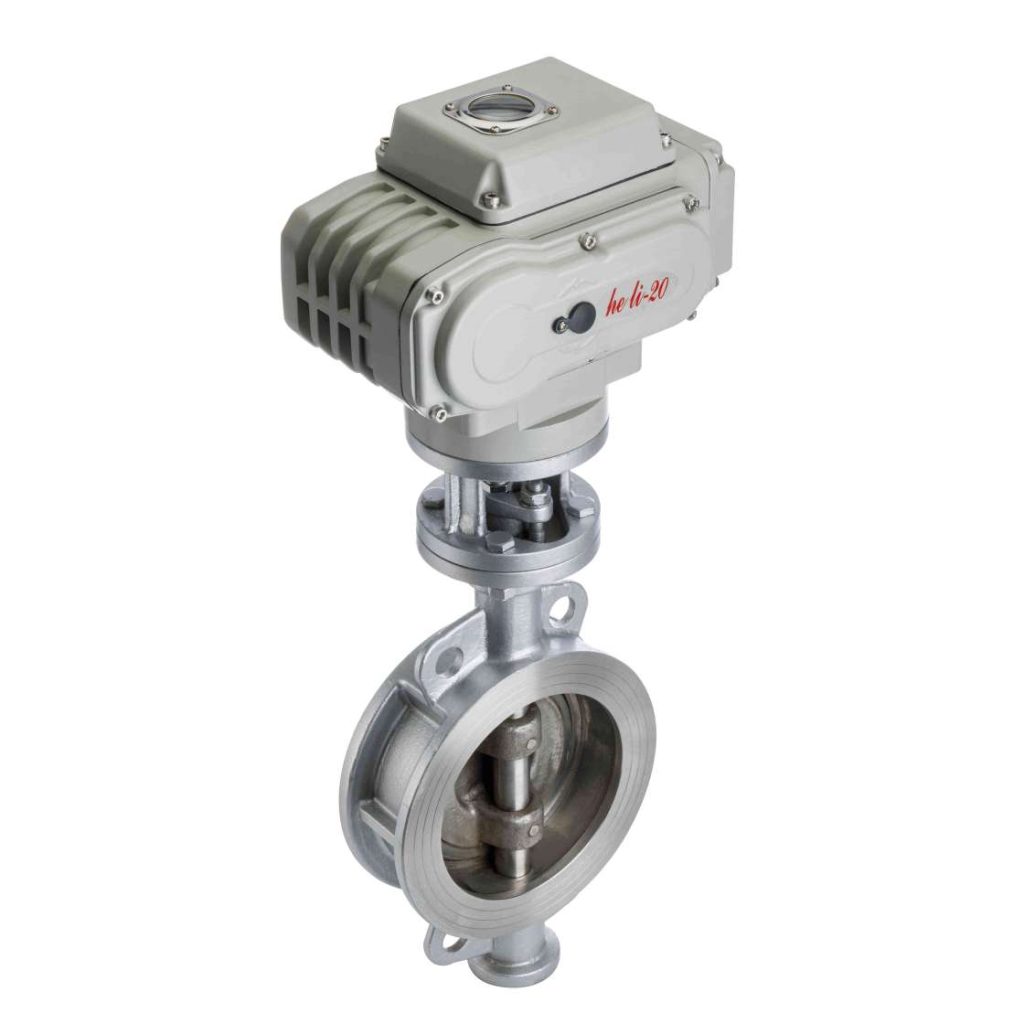

The Electric Three Eccentric Butterfly Valve is a vital component in modern industrial applications, particularly in fluid control systems. Combining advanced design with electric actuation, this valve type offers a reliable solution for regulating flow in various processes. In this article, we will explore its functionality, advantages, and applications across different industries.
Design and Functionality
The electric three eccentric butterfly valve features a unique design characterized by its three eccentric rotation points. Unlike traditional butterfly valves, which typically have a single pivot point, the three eccentric design minimizes friction and wear on the valve seat. This innovative structure allows for a more effective sealing mechanism, significantly reducing the risk of leakage. The valve comprises a disc mounted on a shaft. When the electric actuator is engaged, it rotates the disc to control fluid flow. The three eccentric points provide a distinct advantage during the opening and closing processes, ensuring that the disc moves away from the seat before rotation begins. This not only extends the valve’s lifespan but also enhances its performance under varying pressure conditions.
