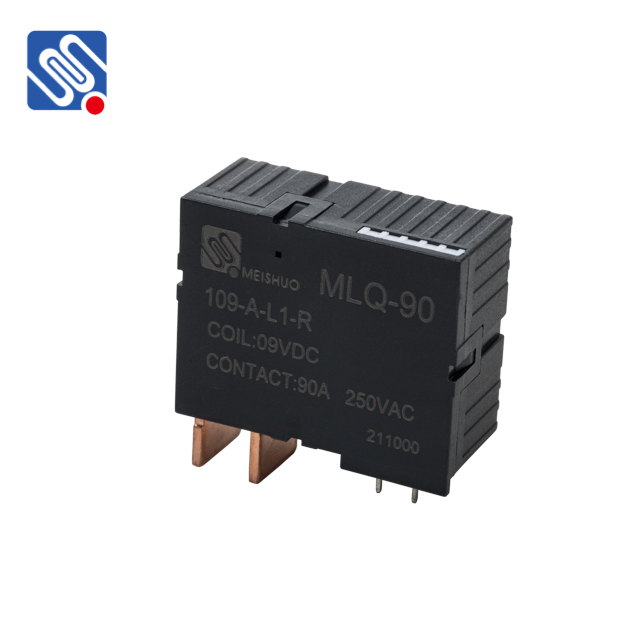

A bistable relay, also known as a latching relay, is an advanced type of relay that offers unique benefits over traditional electromagnetic relays. Unlike conventional relays, which require continuous power to maintain their state, bistable relays operate by retaining their position with no need for constant current. This feature makes bistable relays an efficient and reliable solution for many modern electrical systems and automation applications. In this article, we will delve into the mechanics, advantages, and common uses of bistable relays.
What is a Bistable Relay? A bistable relay is a type of electromagnetic relay that has two stable states: one for the “on” condition and one for the “off” condition. These relays switch between these two states using electrical pulses, typically from a low-energy control signal. Once the relay is activated to either state, it maintains that position without requiring a continuous supply of power. The relay will only change states when it receives another pulse, making it highly energy-efficient. Bistable relays function based on a magnetic mechanism or electronic system that allows the relay to latch in either of its two stable positions. The design can involve mechanical components like a magnet, or it can rely on solid-state electronics in more modern variants.
