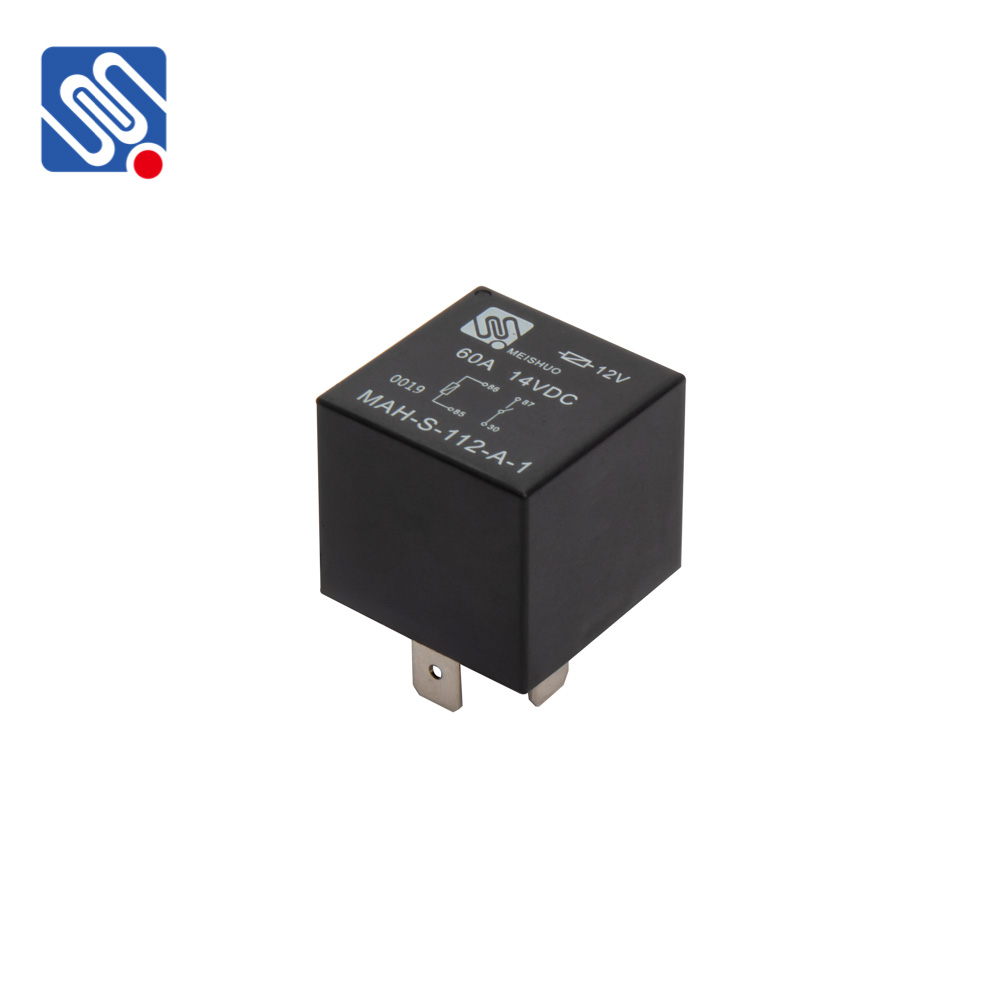

A 12V 60A relay is an essential component in many electrical systems that require high current control. Its primary function is to act as a switch, enabling low power signals to control high power devices. This type of relay is commonly used in automotive, industrial, and household applications where the need for robust electrical control exists. In this article, we will explore the workings, applications, and important considerations for using a 12V 60A relay.
What is a 12V 60A Relay? A 12V 60A relay is an electromechanical device that allows a low-voltage signal, typically 12V, to control the switching of higher electrical loads that might require up to 60A of current. The relay consists of a coil, contacts, and an armature. When current flows through the coil, it generates a magnetic field that moves the armature, causing the contacts to either open or close. This action controls the flow of electricity to a separate high-power circuit. Functionality The 12V 60A relay operates through an electromagnetic principle. When a low voltage (typically 12V) is applied to the relay’s coil, it creates a magnetic field. This magnetic field moves the armature and, in turn, changes the state of the relay’s contacts. There are different contact configurations, such as normally open (NO), normally closed (NC), and common (COM), which allow the relay to either connect or disconnect electrical circuits depending on the system’s needs.
