Relay connections play a critical role in modern electrical and automation systems, offering a simple yet highly effective way to control and manage electrical circuits. Whether in automotive, industrial, or home automation applications, relays enable devices to handle high-voltage or high-current operations with a relatively low-voltage control signal. This article explores the function, applications, and importance of relay connections in various systems.

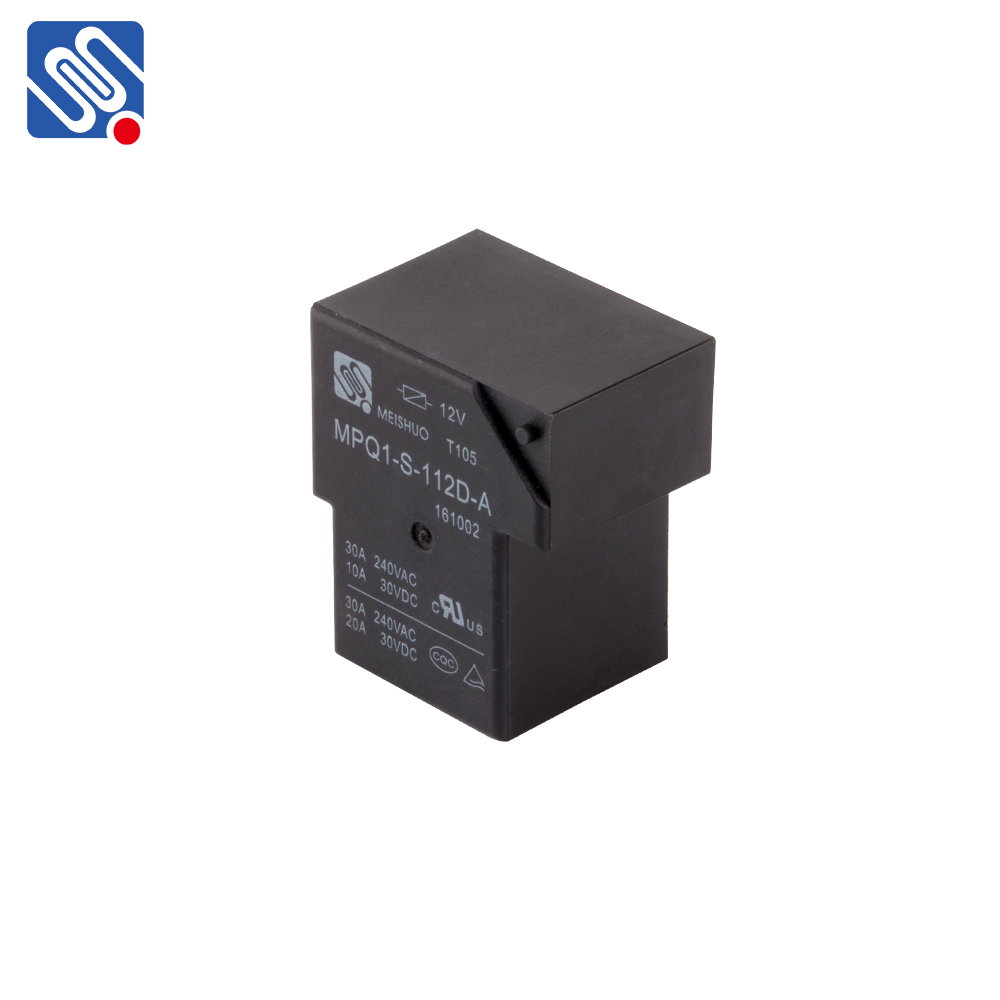

What are Relay Connections? A relay is an electrically operated switch that uses an electromagnet to mechanically operate a set of contacts. It allows one circuit to control another, enabling a low-power circuit to switch a higher-power circuit on or off. A relay works by passing a current through a coil, creating a magnetic field that either opens or closes a switch, depending on the relay’s design. Relay connections typically consist of a coil and a set of contacts. When the coil is energized, the magnetic field generated pulls the contacts together or separates them, closing or opening the circuit. In most relay connections, the control circuit (low power) controls the relay, which then switches the high-power circuit.
