Pneumatic butterfly valves are essential components in various industrial processes, known for their efficiency and reliability in controlling the flow of fluids and gases. These valves utilize a circular disc that rotates on a shaft to regulate flow, making them an ideal choice for applications that require quick and precise operation. This article delves into the design, functionality, and applications of pneumatic butterfly valves, highlighting their significance in modern industrial systems.
Design of Pneumatic Butterfly Valves

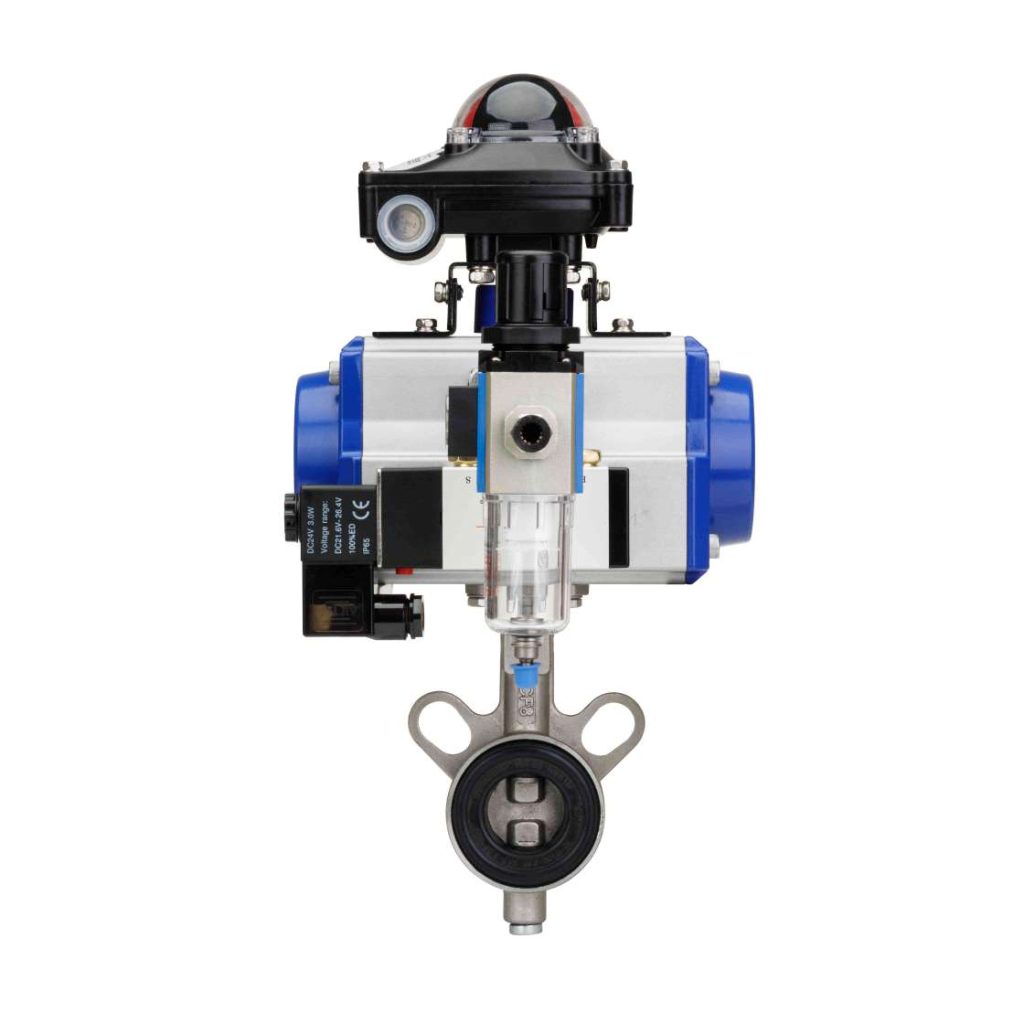

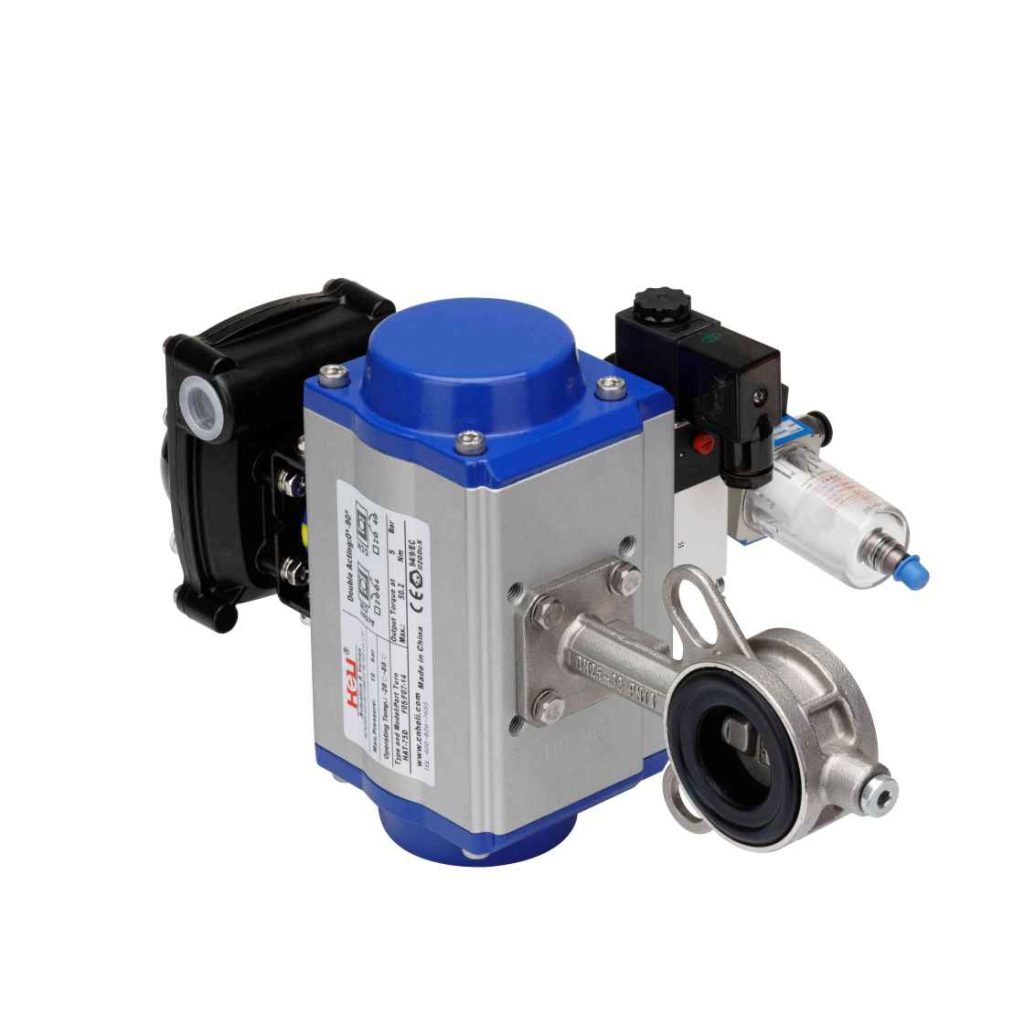

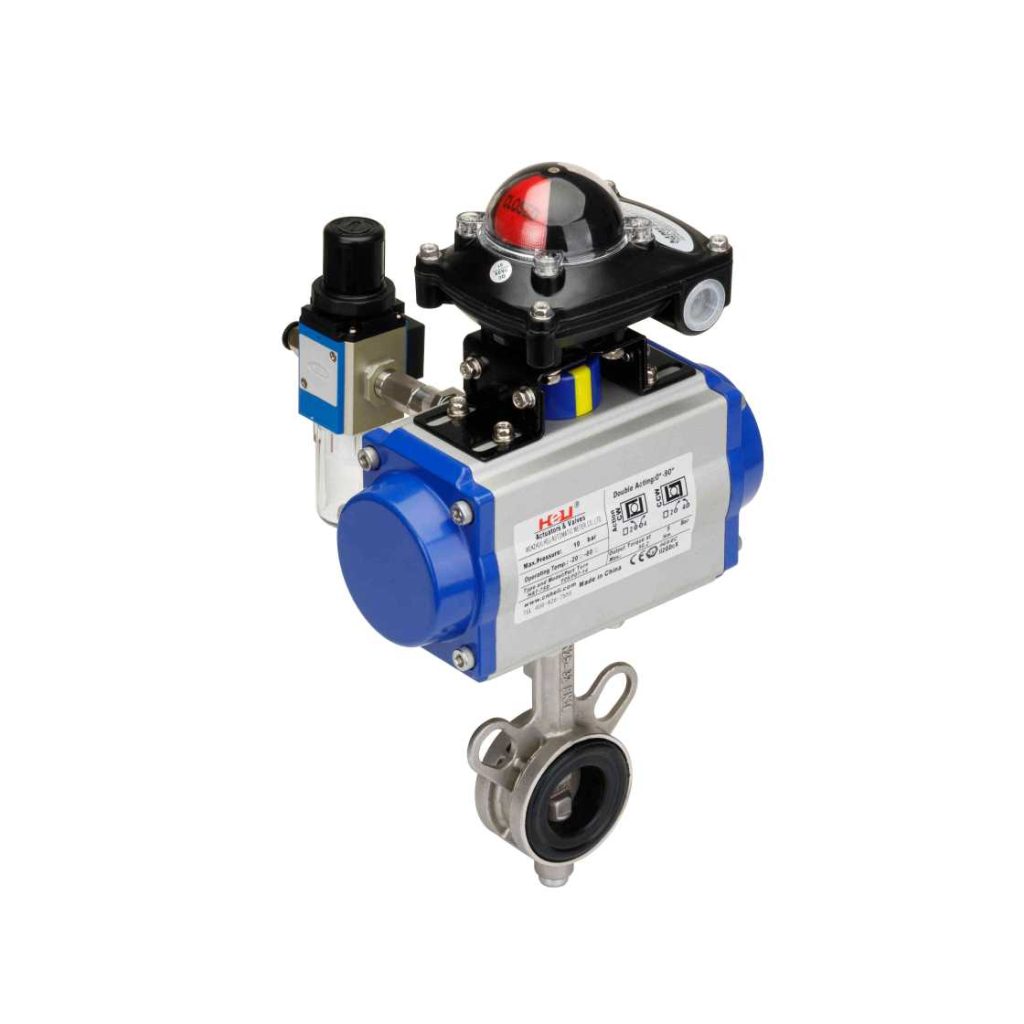

The pneumatic butterfly valve consists of several key components: the valve body, the disc, the shaft, and the actuator. The valve body is typically made from durable materials such as stainless steel, cast iron, or plastic, designed to withstand high pressures and corrosive environments. The disc, which is the heart of the valve, is mounted on a shaft that allows it to rotate either fully open or fully closed, thus controlling the flow of the medium passing through the valve. The actuator is the mechanism responsible for opening and closing the valve. In pneumatic butterfly valves, the actuator is powered by compressed air. This enables rapid movement of the disc, allowing for quick response times in flow regulation. The design of pneumatic actuators can vary, featuring options such as double-acting actuators, which use air pressure to open and close the valve, and spring-return actuators, which utilize a spring mechanism to return the valve to its default position when air pressure is released.
