Pneumatic actuators are essential components in various industrial applications, utilizing compressed air to produce mechanical motion. These devices convert the energy stored in compressed air into linear or rotary motion, making them invaluable in automation and control systems. This article explores the principles of pneumatic actuators, their applications, advantages, and considerations for selection.
Principles of Pneumatic Actuators

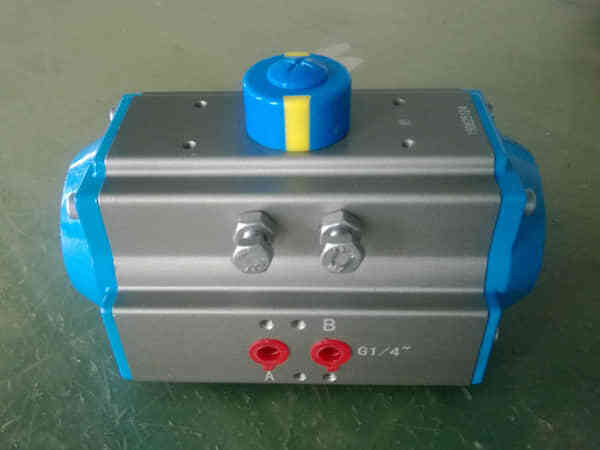

At its core, a pneumatic actuator operates on the principles of fluid dynamics and mechanics. When compressed air enters the actuator, it exerts pressure on a diaphragm or piston. This pressure differential generates movement, which can be either linear or rotary, depending on the actuator design. The two primary types of pneumatic actuators arelinearandrotary. Linear actuators produce straight-line motion, commonly achieved through a piston moving back and forth within a cylinder. Conversely, rotary actuators provide rotational motion, often using a vane or a rack and pinion mechanism.
