A general-purpose relay is a critical component in many electrical and automation systems, offering an efficient and reliable means of controlling electrical circuits. It serves as a switch that allows low-power signals to control larger currents or voltages, making it an essential tool in various industrial and commercial applications. In this article, we will explore what a general-purpose relay is, its working principle, common types, and its wide range of uses.

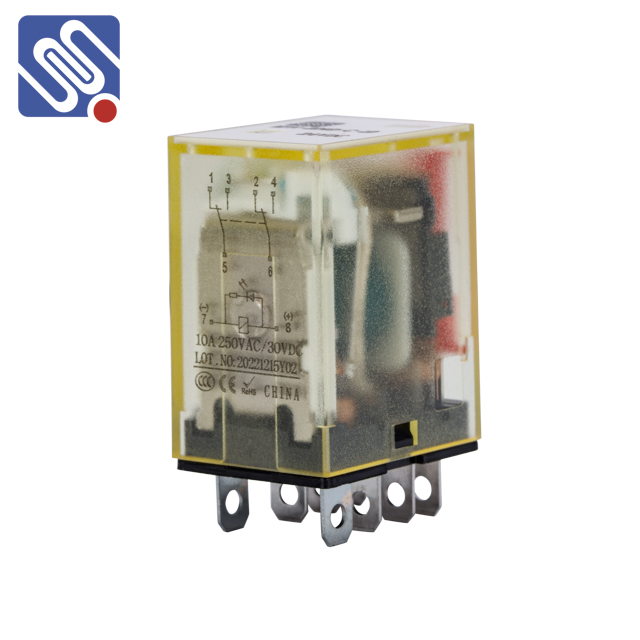

What is a General-Purpose Relay? A general-purpose relay is an electrically operated switch that uses an electromagnetic coil to control the opening and closing of contacts within a circuit. It is typically used to control high-power devices such as motors, lights, and heating systems, by using a low-power signal to activate or deactivate the larger electrical loads. The relay can be activated by a current in a control circuit, which then switches the relay’s contacts to either make or break the larger current circuit. In its most basic form, a general-purpose relay consists of an electromagnet (coil), an armature, and one or more sets of contacts. When an electrical current passes through the coil, it generates a magnetic field that pulls or releases the armature, thereby opening or closing the contacts. This action enables the relay to control high-voltage or high-current equipment while using a much smaller and safer control signal.
