A Direct Acting Solenoid Valve (DASV) plays a pivotal role in a wide range of fluid control systems, providing fast, precise control over the flow of fluids, gases, or steam. These valves are integral to industries such as automation, HVAC, pneumatics, hydraulics, and water treatment, thanks to their simple design and reliable operation. This article delves into the functionality, advantages, applications, and limitations of Direct Acting Solenoid Valves, highlighting why they are a preferred choice for many fluid control applications.

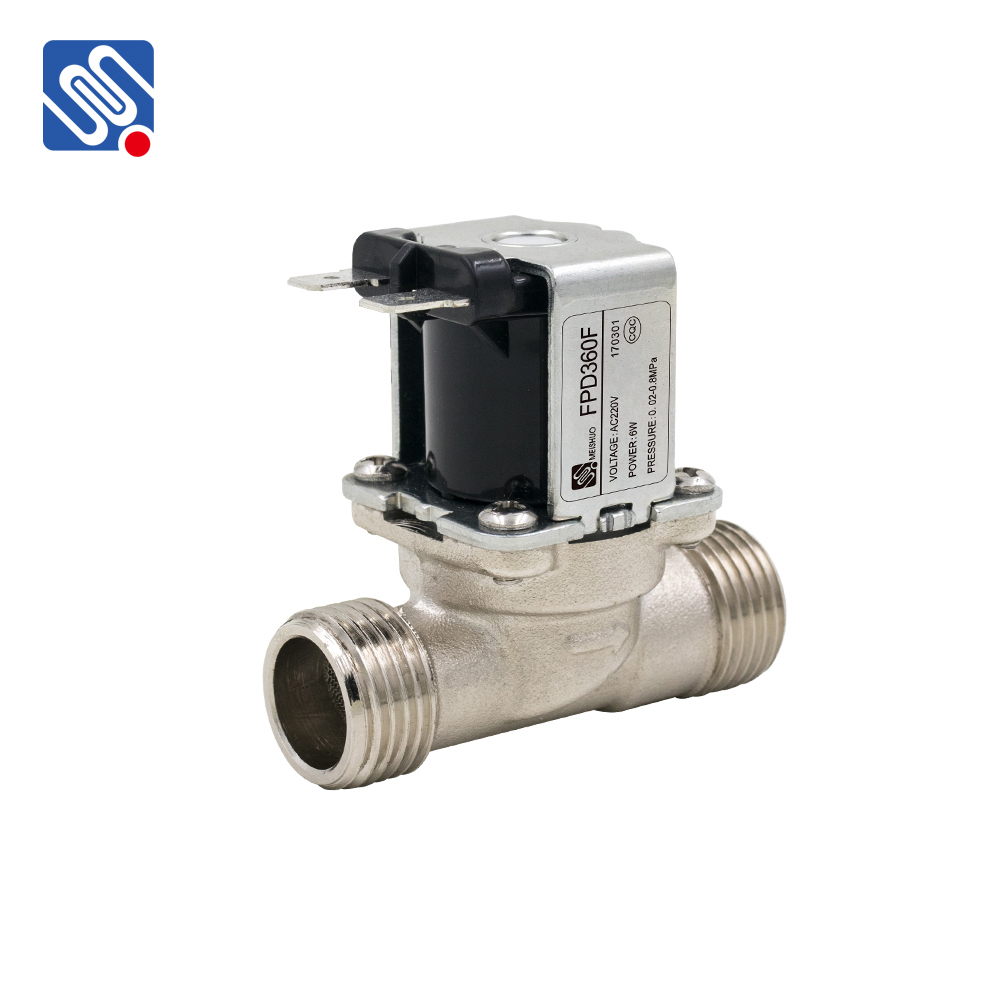

What is a Direct Acting Solenoid Valve? A Direct Acting Solenoid Valve is an electromechanical device used to control the flow of fluids through a pipe. It operates using an electromagnetic solenoid to directly open or close the valve, without the need for an external pressure source. Unlike pilot-operated solenoid valves, which rely on system pressure to assist in valve operation, a direct acting valve uses the magnetic field generated by the solenoid to drive the valve mechanism. This makes it particularly suitable for low flow, low pressure applications. How Does it Work? The operation of a Direct Acting Solenoid Valve is relatively simple yet efficient. The valve consists of three primary components： a solenoid coil, a plunger or valve core, and a spring. When electric current flows through the solenoid coil, it generates a magnetic field that pulls the plunger, moving it into a position that either opens or closes the valve. In the absence of current, the spring pushes the plunger back to its default position, closing the valve. The design ensures that the valve operates with no need for additional force or assistance from external pressure.
