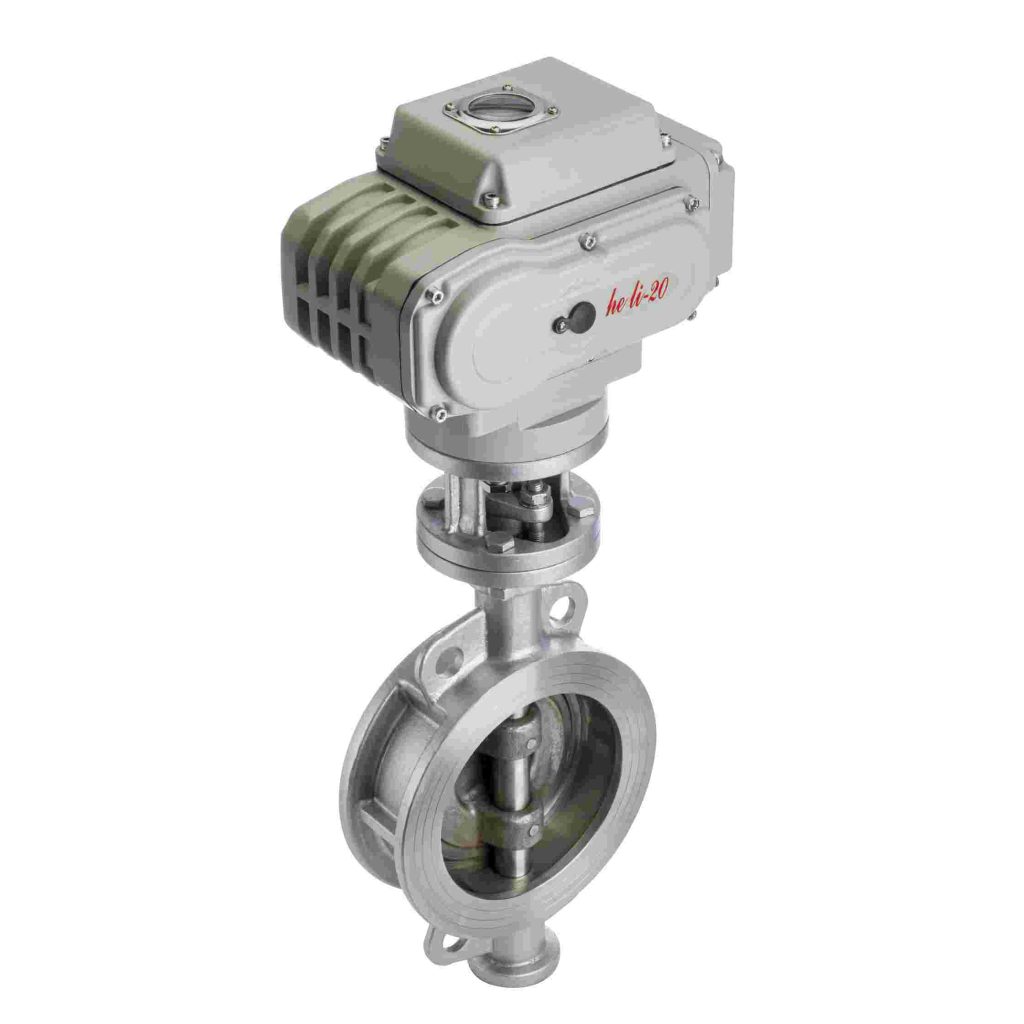

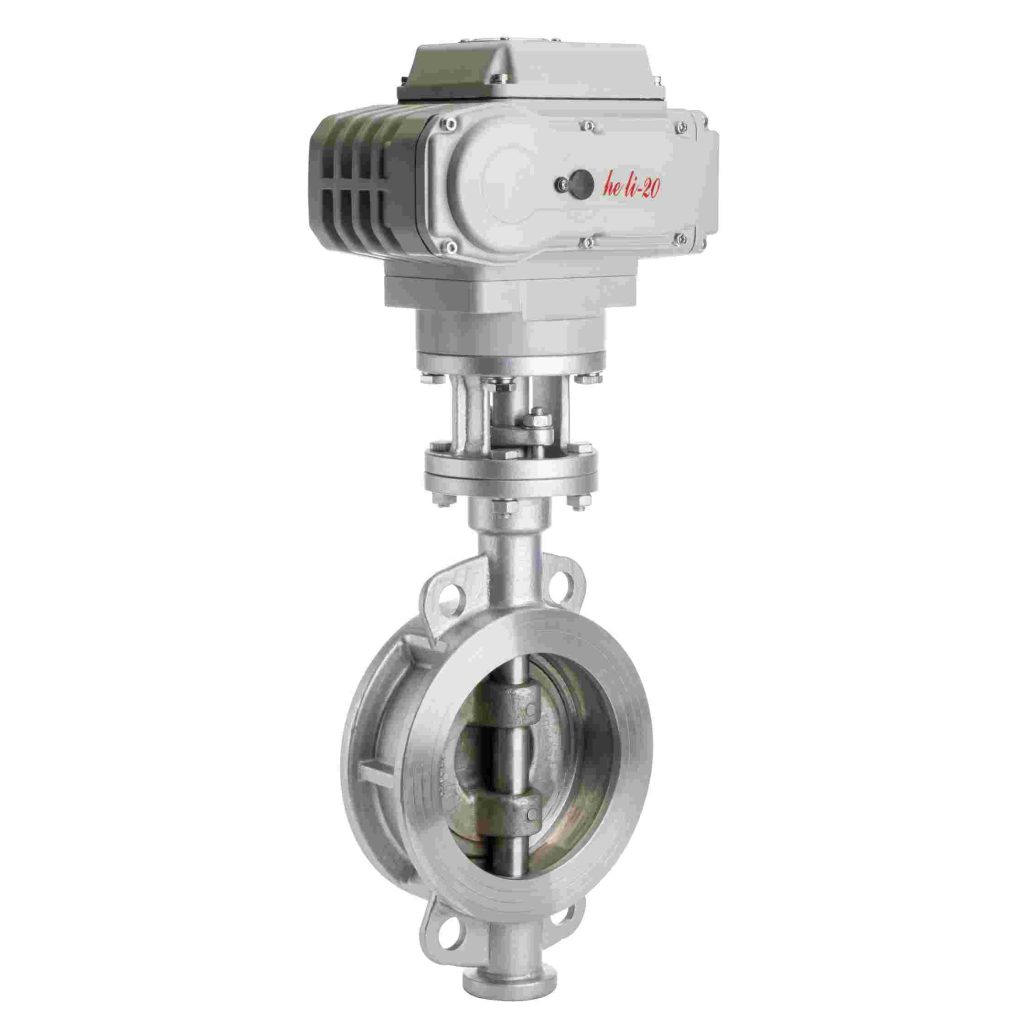

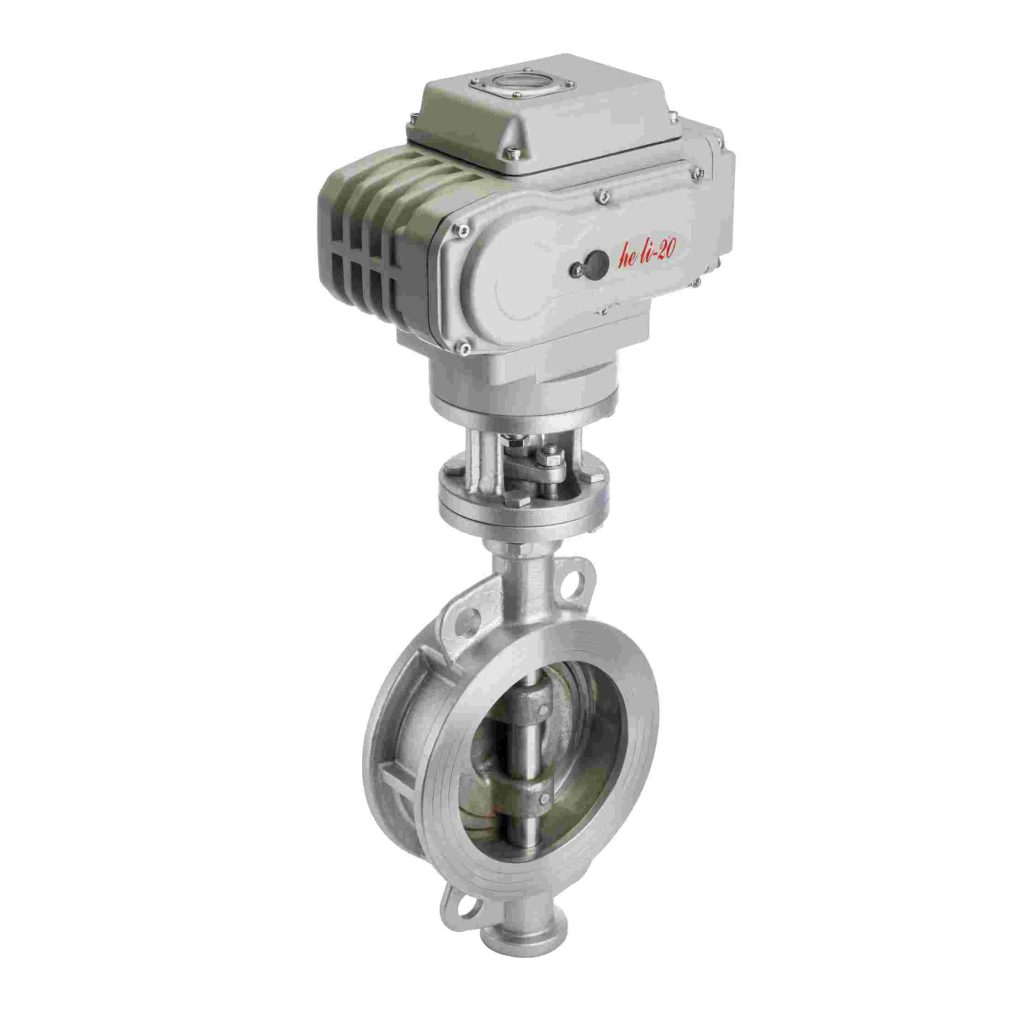

In recent years, the global push towards sustainable energy solutions has led to significant advancements in various technologies, including fluid control systems. Among these advancements is the Hydrogen Energy Electric Three Eccentric Butterfly Valve, a critical component in the management of hydrogen and other gases. This article delves into the design, functionality, advantages, and applications of this innovative valve.
Understanding the Structure
The Hydrogen Energy Electric Three Eccentric Butterfly Valve is a type of valve that utilizes a unique three-eccentric design to achieve optimal performance in varying pressure and temperature conditions. The valve comprises a disk mounted on a shaft that pivots to open and close the flow of fluid. The three-eccentric design refers to the arrangement of the valve’s shaft and disk, which allows for a more efficient sealing mechanism and reduced wear over time. How It Works The operation of the three eccentric butterfly valve is based on its geometry. Unlike traditional butterfly valves that have a single pivot point, the three-eccentric design allows the disk to move away from the seat as it opens. This reduces the friction between the disk and the sealing surface, enhancing the valve’s longevity and efficiency. In hydrogen applications, where the properties of the gas can create challenges for traditional valves, this design is particularly beneficial.
