Testing a communication relay with a multimeter is an essential skill for anyone working with electrical circuits, particularly when it comes to ensuring the proper function of relays in communication systems. Relays are integral components used in various devices, including communication systems, for switching operations. If a relay fails, it can lead to equipment malfunctions, making it crucial to perform regular checks. This guide will walk you through the process of testing a communication relay using a multimeter.

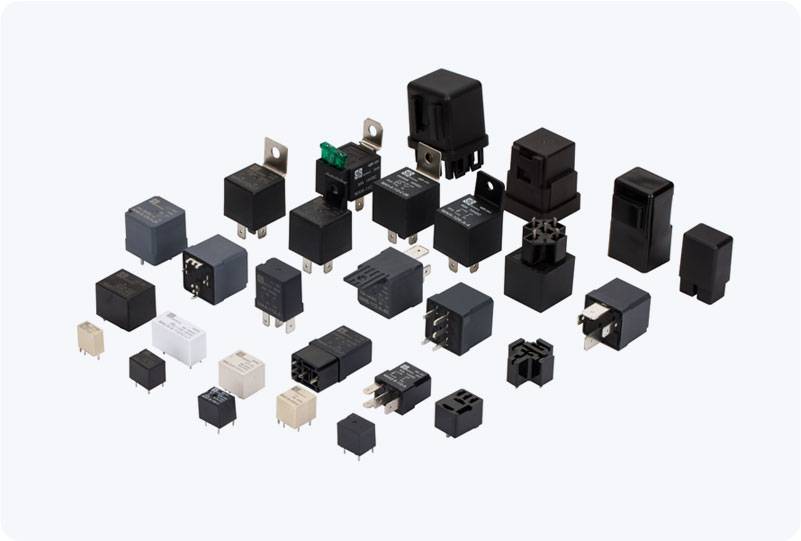

1. Understanding the Communication Relay Before jumping into the testing procedure, it’s important to understand the basic components of a relay. A typical communication relay consists of several terminals： Coil： The coil is the electromagnet inside the relay. When energized, it creates a magnetic field that causes the relay to switch between its contacts. Common (COM)： The common terminal is used as the reference point for the switching action. Normally Open (NO)： This terminal is open when the relay is not energized. It closes when the relay is activated. Normally Closed (NC)： This terminal is closed when the relay is not energized and opens when the relay is activated.
