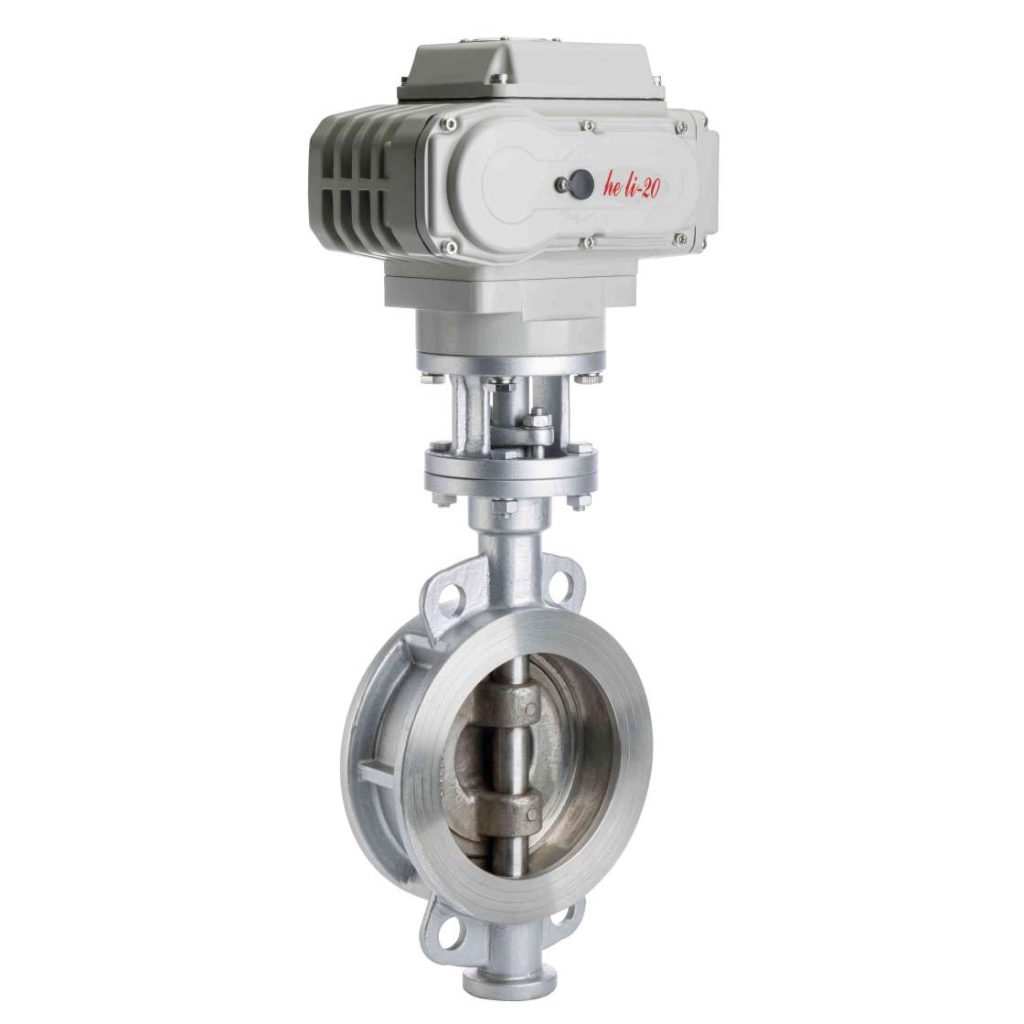

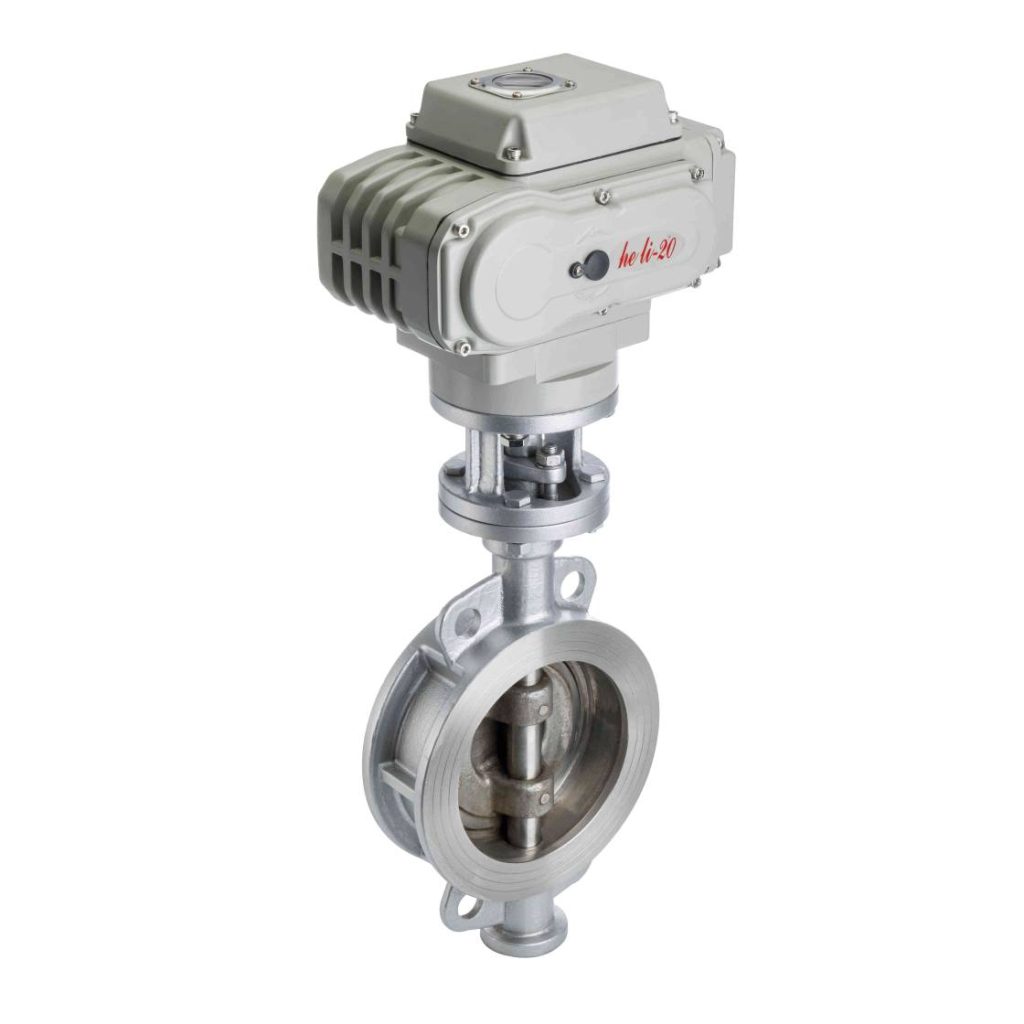

Electric three eccentric butterfly valves are crucial components in industries where flow regulation and reliable sealing are paramount. These valves stand out due to their innovative three eccentric design, which not only enhances performance but also extends the life cycle of the valve. With the added benefit of electric actuation, these valves provide efficient, automated control over fluid systems, making them a popular choice in heavy-duty industrial applications.
The Functionality of Electric Three Eccentric Butterfly Valves
At the core of an electric three eccentric butterfly valve is its ability to control the flow of fluids through a pipeline by using a rotating disc. This disc is the “butterfly” part of the valve, and when it rotates, it either restricts or allows fluid to pass through. Unlike traditional butterfly valves, the three eccentric design introduces three specific offsets, which improve performance and provide several key benefits. These three eccentricities typically refer to the offset between the valve’s stem and centerline, the offset between the valve disc and seat, and the offset between the valve shaft centerline and the sealing surface. This design ensures that the disc lifts off the seat before fully rotating, reducing friction and preventing wear between the disc and seat. The result is less wear and tear, a more effective seal, and a longer service life for the valve.
