Electric clamp butterfly valves are integral components widely used in various industries for regulating fluid flow. Their design and functionality offer distinct advantages, making them an essential choice for many applications. This article delves into the design, operation, benefits, and applications of electric clamp butterfly valves, highlighting why they are favored in modern fluid control systems.
Understanding Electric Clamp Butterfly Valves

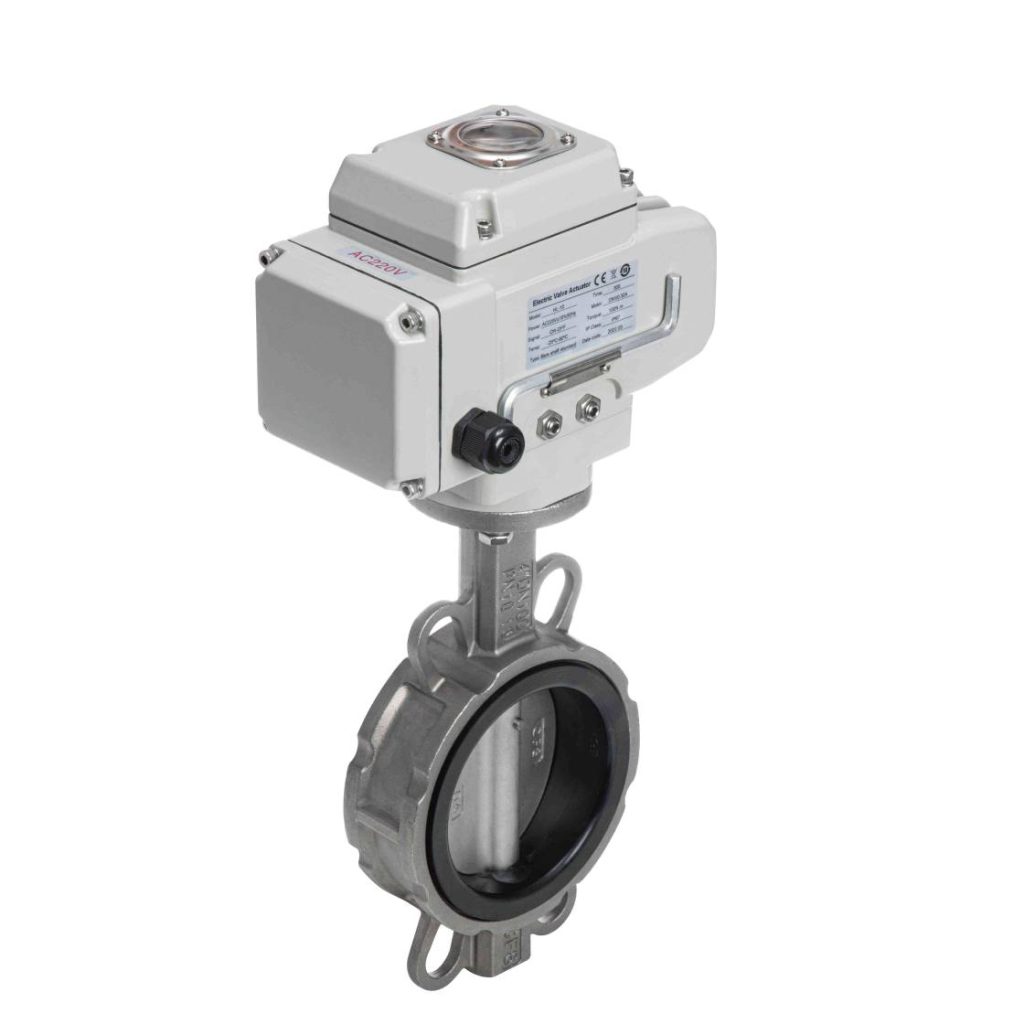

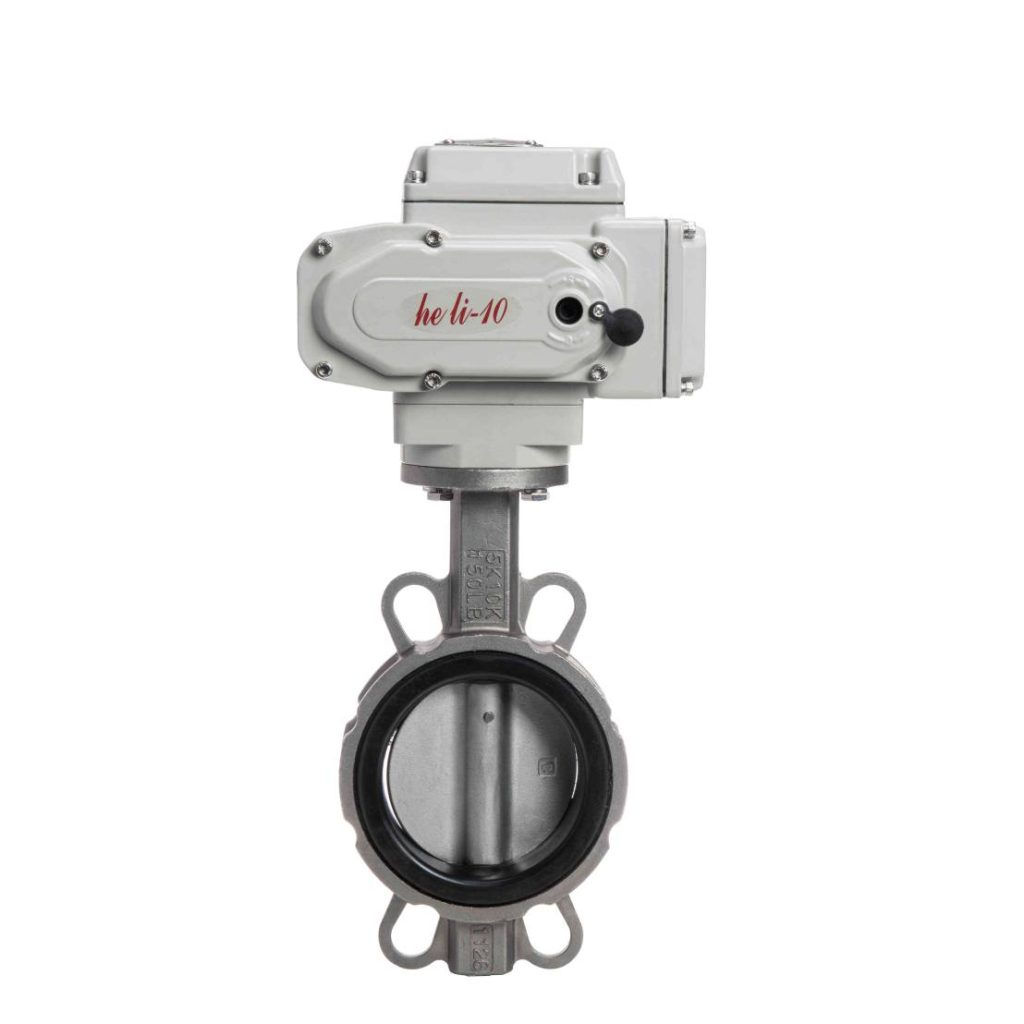

An electric clamp butterfly valve consists of a circular disc that rotates around a central axis, positioned in the flow path of a fluid. The valve’s design allows for quick opening and closing, making it ideal for applications requiring efficient flow control. The term “electric clamp” refers to the actuator mechanism that powers the valve. Unlike traditional manual valves, which require physical effort to operate, electric actuators provide automated control, enhancing precision and ease of use. Design Features The primary components of an electric clamp butterfly valve include: Disc: The disc is the heart of the butterfly valve, designed to control fluid flow by rotating around its axis. It can be made from various materials, including stainless steel, plastic, or other alloys, depending on the application’s requirements.
